Tank Beer Installation
On this page, you will learn more about all the components required to make a tank beer system function and how to set it up.

.png?width=2000&height=1550&name=1%20(3).png)

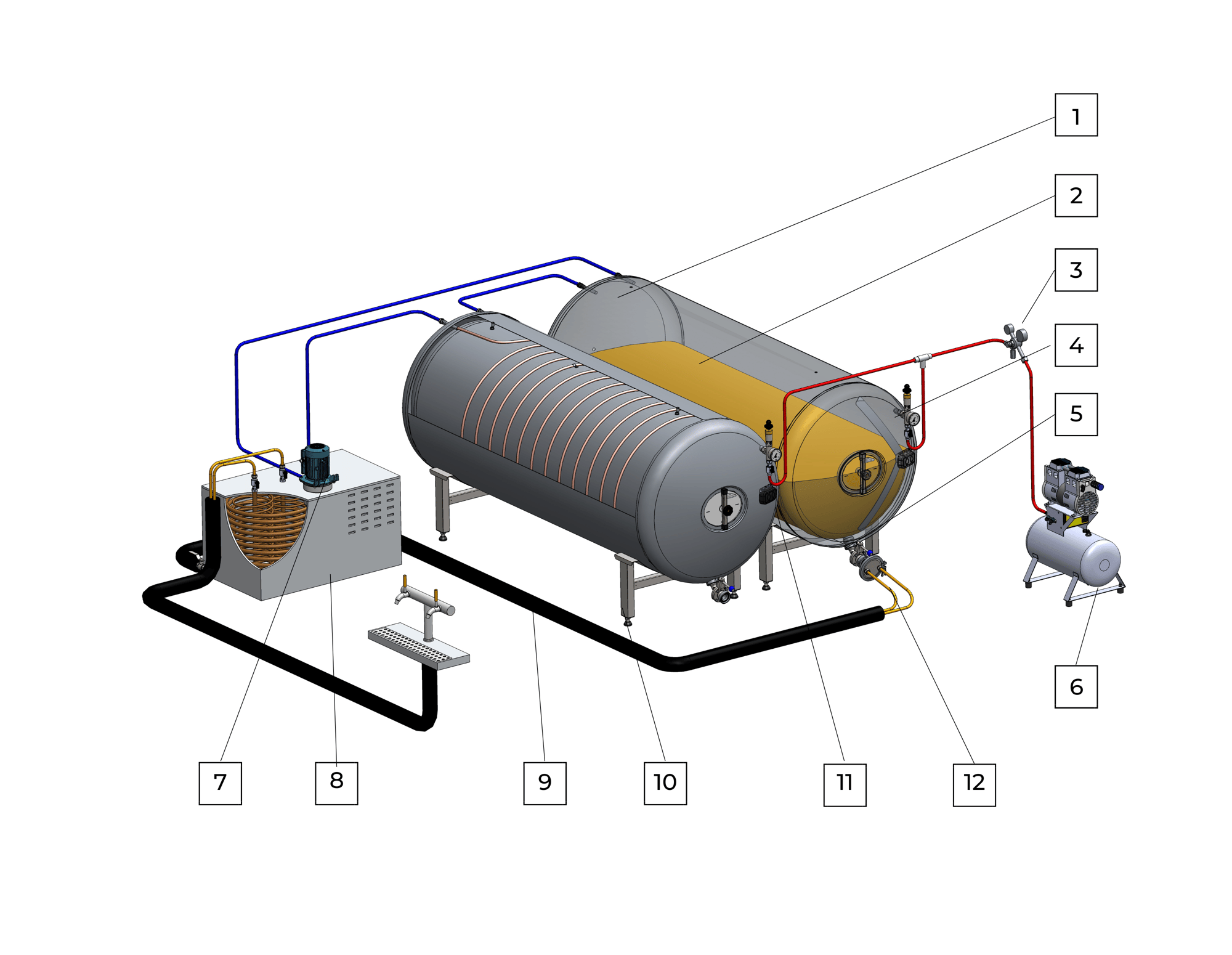

1. Insulated tank
2. Beerliner
3. Pressure regulator
4. Safety valve
5. Piercing unit
6. Air compressor
7. Cooling pump
8. Cooler
9. Python
10. Frame
11. DSO
12. Beer distributor
Tank Beer Installation Guide
Watch the demonstration video to see how to set up a tank beer system from start to finish.
Need clarification?
Do you need to hire a specialist to install a tank beer system?
Our advice is to contact Duotank or a company that specializes in connecting keg and tank installations. If you have the necessary knowledge, materials, and tools yourself, you can also make use of this instructional video.
When purchasing a tank beer system, do you need to buy the cooler and compressor from Duotank?
No, the Duotank cooler and compressor are not mandatory. The cooler itself is a standard water bath cooler, and the air compressor simply needs to operate oil‑free. Duotank even recommends sourcing these components from a local supplier to ensure faster and easier service.
What is the operating pressure of the system?
The maximum pressure at which a tank beer system operates is 3 bar, which is controlled by the safety valve. The actual operating pressure depends on the distance and height difference between the tank and the tap. In most cases, the system runs at an operating pressure of approximately 2 bar.
Does Duotank supply the inliners?
Yes, you can order the inliners from Duotank. You can contact us here.
Download the Tank Beer brochure here
Download your brochure here for more general information about tank beer systems.
Download the Tank Beer product catalogue here
Download the product catalogue here for more technical information about the tank beer system.
